Research Article | Open Access
S. Aruna and Sriramulu Gobikrishnan
Department of Food Processing Technology, School of Agriculture and Biosciences, Karunya Institute of Technology and Sciences, Coimbatore – 641 114, Tamil Nadu, India.
J Pure Appl Microbiol. 2021;15(1):114-122 | Article Number: 6649
https://doi.org/10.22207/JPAM.15.1.06 | © The Author(s). 2021
Received: 14/09/2020 | Accepted: 05/01/2021 | Published: 23/01/2021
Abstract

The present study focuses on the effect of the organosolvent extraction with steam explosion pretreatment and optimization of cellulase activity using the response surface methodology for the production of bioethanol. The commercial cellulase enzyme was characterized for its optimal pH, temperature, and also studied for the enzyme activity. The effect of organosolvent pretreatment was identified in both native and pretreated wild sugarcane by SEM, XRD, and FTIR. The cellulase enzyme was found to be tolerant with an optimal pH of 5.0 with cellulase activity of pretreated wild sugarcane is found to be 25.36 IU/ml. Organosolvent extraction of wild sugarcane was carried out using water and ethanol as solvent. The composition of lignin, hemicelluloses, and cellulose was also determined in both pretreated and native biomass. The activity of the enzyme was observed over the effect of enzyme loading, substrate loading, temperature, and pH using a Box-Behnken design.

Keywords

Organosolvent extraction, Response Surface Methodology, Cellulase activity, XRD, FTIR, SEM

Introduction

Bioethanol is ecofriendly since it is produced from renewable energy sources of biomass which can be utilized as an alternative to fossil fuel1. To get better of a dispute regarding the usage of human food, lignocellulosic materials can be used as the feedstock for the production of bioethanol. Global warming and the increase in atmospheric CO2are happening due to the consumption of fossil fuel, to overcome this issue it is necessary to focus on bioethanol2. Biofuel feedstocks are renewable energy products consists of high carbon concentration (C), hydrogen (H), low oxygen concentration (O), nitrogen (N), and inorganic constituents such as (Ca, Mg), which releases energy during its conversion process which helps to regulate the temperature in the environment3. Bioethanol produced from biomass is also known as Modern biofuels that provide good-quality energy have a use for transportation fuel4. Plant biomass consists of carbohydrates such as cellulose, hemicelluloses, starch, and pectin which can be a suitable substrate for biofuel production5. The development of new lignocellulosic feedstock with minimum lignin concentration may be an efficient and cost-effective strategy for the development of lignocellulosic biomass bioethanol. Saccharum Spontaneum (wild sugarcane) consists of cell wall substances rich in cellulose, hemicellulose, and pectin but minimal in lignin. For the removal of lignin various pretreatment methods are used. Compared with other pretreatment methods the high yield of glucose and xylose were caused by a steam explosion6. The method explodes biomass by rapid depressurization from extreme temperature and pressure situations to increase the responsiveness of cell wall content to cellulase thermal decomposition to achieve higher yields for subsequent fermentation. Steam explosion is a thermo-hydrolytic pretreatment process for enhancing enzymatic saccharification and synthesis of bioethanol7. Nevertheless,  due to the high temperature and pressure anticipated and the  development of inhibitors,  the drawback is the high  energy supply. Nowadays organosolvent pretreatment has been used for the removal of lignin and valuable co-product (e.g. acetone, butanol, biogas) production8-13. Organosolvent pretreatment helps to increase the yield of conversion during fermentation by influencing the acid, enzymatic, and microbial action14. In 1893, organic solvents were used to treat the lignocellulosic material, to study the structure of carbohydrate and lignin, Klason15 used hydrochloric acid and ethanol to separate the components of wood. To balance the biological process of enzymatic hydrolysis of cellulose it is necessary to perform mathematical modeling with different variables16. Enzyme loading, substrate loading, temperature, and pH are the significant factors that influence the activity of the enzyme of pretreated biomass. To determine the optimal process parameters for optimization and modeling of several variables a statistical technique (RSM) Response surface methodology was used, this is done by combining the experimental results with the variables. The optimum parameters to gain the desired response can be predicted by using RSM with the experimental data, whereas the mathematical model interprets the connection between the responses and the experimental variables. In this study, for the production of bioethanol by organosolvent pretreatment the wild sugarcane was examined. For the conversion of cellulose into ethanol, the activity of the enzyme has a major role in hydrolysis and fermentation. To enhance the activity of the enzyme it is necessary to focus on the optimization of enzymatic conditions, this can be done by using RSM. Thus, the current study was aimed to know the efficiency of organosolvent extraction with steam explosion pretreatment to induce the structural and chemical changes made by thermophysical pre-treatment in the wild sugarcane.

Materials and Methods

Feedstock
The plant Saccharum spontaneum L (wild sugarcane) was collected from Ash Lake, Neyveli, Tamilnadu, India, and authenticated by the Botanical Survey of India (BSI), TNAU – BSI/SRC/2804. The stem part of the plant was sun-dried, powdered, and stored at room temperature for further use.

Organosolvent Extraction with steam explosion
To a 250ml stoppered conical flask, 5g of powdered sample was taken and mixed with ethanol and water in a 1:1 ratio. The mixture was kept for pretreatment in an autoclave under the conditions of 15 lb pressure, 121°C temperature for 60minutes.After pretreatment, the samples are washed with distilled water to neutralize the pH. The pretreated biomass is dried at room temperature and stored.

Compositional Analysis
The moisture and ash content of the feedstock was calculated by the standard method (AOAC 1990)17. Cellulose content was measured by the method described by (Norman and Jenkins 1933)18. Briefly, to 0.5g or 1g sample, 3 ml of acetic/nitric reagent were added and kept for boiling at 100°C for 30mins. The samples were cooled, centrifuged at 5000 rpm and the residual pellet was washed with distilled water. To the washed pellet 10ml of 67% sulphuric acid was added. The solution was diluted 100 times and to the 1 ml of diluted solution, 10ml of anthrone reagent was added and kept in a boiling water bath for 10mins. The absorbance was measured at 630nm and the amount of cellulose was calculated from the standard graph plotted with different concentrations of cellulose. The amount of lignin was determined by calculating acid detergent fiber and acid detergent lignin18. The amount of hemicellulose was estimated by the method described by (Norman and Jenkins 1933)19.

SEM
SEM analysis was performed using (JOEL – JSM 6390, Japan) to study the differences between pretreated and native wild sugarcane based on its morphology. The magnification of the image is 500X whereas its accelerating voltage is 10- 15kV.

XRD
XRD analysis was done using (XRD-6000 Schimadzudiffractometer) for the native and pretreated wild sugarcane. Diffraction patterns were reported utilizing 40 kV and 30 mA Cu-Kα radiation and 10-30° grade scale with a 0.03° phase scale. The crystallinity index was calculated based on the equation

CrI(% ) = [(I002 – Iam)/I002] x 100

FTIR
FT-IR spectroscopy (Shimadzu Spectrometer, Japan) was used to study the difference in structural and functional groups through the FT-IR spectrum which acts as a molecular fingerprint of the sample. The FT-IR spectrum is measured at the range of 4000 and 400 cm-1 and 50 scans for each sample.

Enzyme activity
Enzyme activity of steam-exploded wild sugarcane was performed in boiling tubes by heating 0.5g of biomass in 1.0 mL of 0.05 M Na-citrate buffer (pH 4.8). The content was heated for 10mins at 50°C. The enzyme assay was carried out using a commercial cellulase. 0.5 mL enzyme was added after appropriate dilution in citrate buffer to the tube. Blanks, controls, and glucose standards were also kept in a water bath along with the enzyme assay tubes at 50°C for 1 hour, Finally, 3.0 mL of 2,5-dinitrosalicylic acid was added to end the reaction and the absorbance was measured at 540nm. The amount of reducing sugar released was calculated using glucose standard and the enzyme activity (FPU) is determined based on the following equation

Optimization of Enzyme activity by RSM
To study the factor interactions with multiple combinations of variables and the response of independent variables Box-Behnken design was used. The selected variables were enzyme loading, substrate loading, temperature, and pH. A total of 29 runs were used for the study and the effect of four variables was studied at three different levels. For the quadratic model building, experimental design, and data analysis the Design Expert Stat-Ease Version 12software was used. The experimental setup of RSM is shown in Table 1.

Table (1):
Activity of enzyme for individual runs of the RSM design.

Trial No
Temperature (0C)
pH
Substrate loading (mg)
Enzyme loading in (ml)
Activity of enzyme in (IU/ml)
1
40
4
50
0.7
10.70
2
60
4
50
0.7
8.07
3
40
6
50
0.7
10.60
4
60
6
50
0.7
7.86
5
48
5
30
0.4
22.13
6
48
5
70
0.4
17.36
7
48
5
30
1
19.32
8
48
5
70
1
16.93
9
40
5
50
0.4
15.77
10
60
5
50
0.4
11.21
11
40
5
50
1
16.03
12
60
5
50
1
12.77
13
48
4
30
0.7
16.69
14
48
6
30
0.7
17.01
15
48
4
70
0.7
15.78
16
48
6
70
0.7
13.57
17
40
5
30
0.7
14.86
18
60
5
30
0.7
10.98
19
40
5
70
0.7
13.49
20
60
5
70
0.7
7.99
21
48
4
50
0.4
18.54
22
48
6
50
0.4
17.03
23
48
4
50
1
17.53
24
48
6
50
1
14.21
25
48
5
50
0.7
25.36
26
48
5
50
0.7
25.36
27
48
5
50
0.7
25.36
28
48
5
50
0.7
25.36
29
48
5
50
0.7
25.36
RESULTS AND DISCUSSION

Pretreatment, compositional analysis, and characterization of native and organosolvent extraction coupled with steam explosion pretreated biomass
The organosolvent extraction with steam explosion pretreated wild sugarcane upon enzyme activity yielded 25.36 IU/mL of cellulase activity/gram of biomass after pretreatment. The cellulose, lignin, and hemicelluloses gained from 1g of pretreated and native wild sugarcane is presented in Table 2. Steam explosion pretreatment is a delignification process. The porosity of biomass gets increased due to the removal of ester linkages. The difference between the pretreated and native biomass of wild sugarcane was identified from FTIR, SEM, and XRD and analysis. From the SEM images, the changes between native and pretreated biomass were examined. Fig. 1 shows the SEM images of pretreated and native wild sugarcane. The pretreated biomass has a distorted complex whereas the native biomass has a compact rigid complex. The efficiency of the hydrolysis process will be increased when the biomass has increased surface area and distorted structure. Similar observations were reported earlier for sugarcane bagasse pretreated with formic acid20, bamboo pretreated with cold sodium hydroxide/urea21.The crystallinity changes of native and pretreated biomass were identified using the XRD spectrum. The pretreated and native X-ray diffractograms are presented in Fig. 2. The crystallinity indexes of pretreated native and pretreated samples were 46.4% and 36.13%. During the pretreatment, the glycosidic linkages of the cellulose fibers gethydrolyzed which increases the crystalline polymer directly increases the crystallinity Index. Similar observations have been identified in previous studies, such as organosolvent pretreated rice straw22 and pretreatment of switchgrass with acid23. Cellulose, hemicelluloses, and lignin are the important biopolymers which influence the lignocellulosic materials of FTIR spectra24. Fig. 3presents the FTIR spectra of pretreated and native biomass. The differences are detected in absorption spectra. The band widening at 3652 cm-1 can be ascribed to CH2 wagging vibrations in cellulose. The characteristic band at1828 cm-1 was assigned to lignin removal, guaiacylring of lignin which is present in the spectra of native biomass was found to be absent in the pretreated spectra, this indicates the removal of lignin after pretreatment. The disappearance of bands at 1828 cm-1 may be due to the depolymerization of lignin after pretreatment.

Table (2):
Composition of native and organosolvent pretreated wild sugarcane.

Components
(% w/w)
Native
Pretreated
Cellulose
41.23
56.11
Hemicellulose
23.26
15.12
Lignin
11.21
5.64

Fig. 1. SEM images of wild sugarcane (a) native, and (b) organosolvent pretreated wild sugarcane

Fig. 2. X-ray diffraction pattern of native and organosolvent pretreated wild sugarcane.

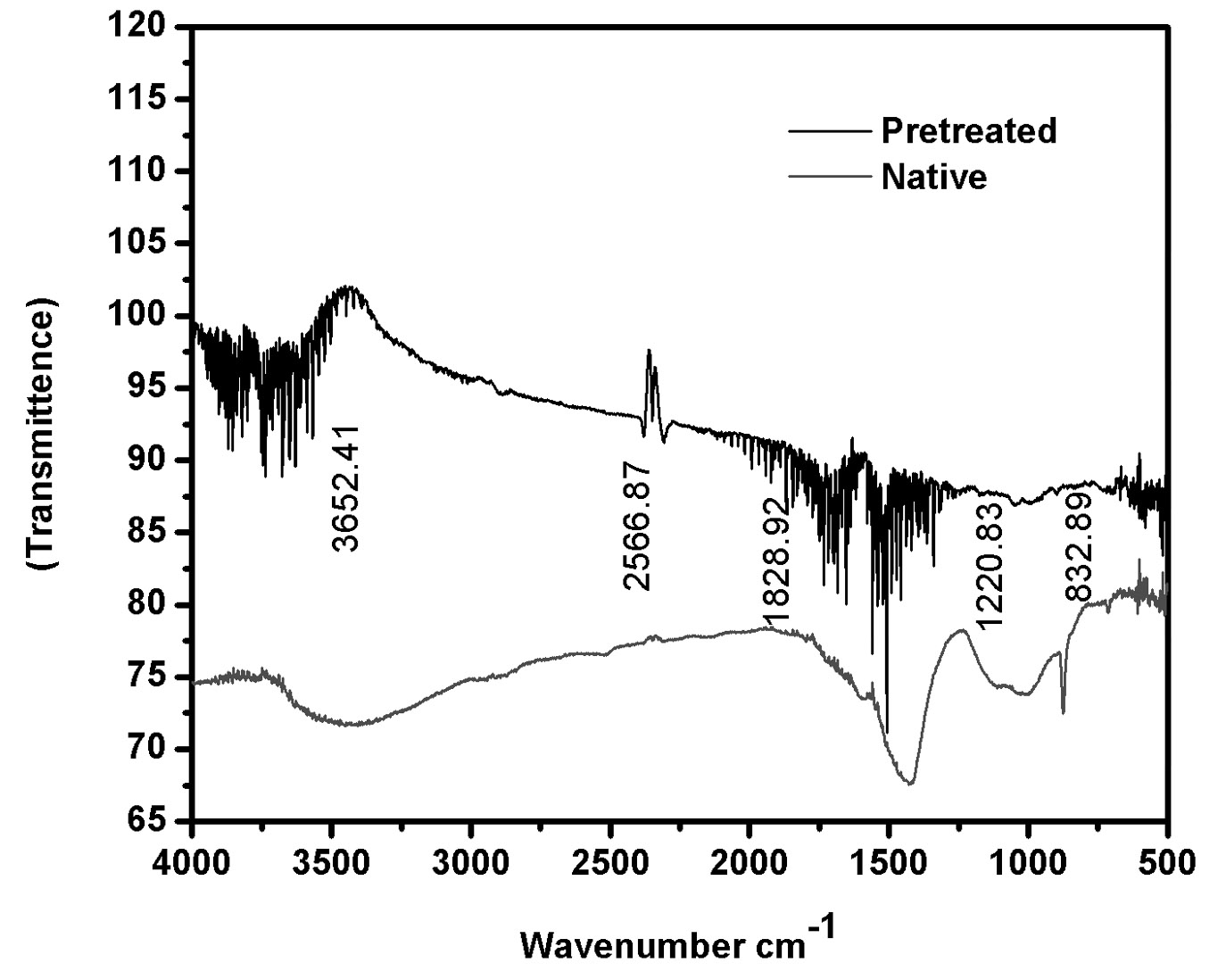

Fig. 3. FTIR spectra of native and organosolvent pretreated wild sugarcane.

Optimization of cellulase activity
The enzymatic hydrolysis as an action of substrate loading, enzyme loading, pH, and Temperature was evaluated. 29 trials were done with the combination of different factors and the response observed is presented in Table 1. The interaction effects of variables on cellulase activity were studied to know the optimal response of each variable by plotting three-dimensional surface curves. The interaction of the variables from pretreated wild sugarcane on enzyme activity are shown in the surface plot given in Fig. 4a-f. Fig. 4a specifies the cellulase activity as a function of substrate loading and temperature. At a lower level of substrate loading and lower temperature, the activity of the enzyme was low. The results of the surface plot explain that temperature (48°C) and biomass loading (50mg), the cellulase activity was high. From the results, increasing the temperature from 48 to 60 h does not increase the yield of wild sugarcane after pretreatment. The decrease in cellulase activity can be the result of the inhibition of the enzymes. Fig. 4b indicates the interaction of enzyme activity between temperature and enzyme loading. Enzyme loading differs based on the pretreatment method and the composition of the feedstock used. The interaction effects of temperature and pH on enzyme activity are shown in Fig. 4c. This surface plot explained that, at lower levels of pH and higher levels of temperature, the enzyme activity was low. The enzyme activity increased with pH 5 and temperature 48°C, beyond that there was a reduction in the enzyme activity. The impact of pH and substrate loading on enzyme activity is shown in Fig. 4d. At lower levels of pH and lower levels of substrate loading, the enzyme activity was low. This surface plot suggests that the maximum activity of cellulase was achieved at the middle level of pH concentration (5) and the middle level of substrate loading (50mg). The interaction on enzyme activity between enzyme loading and substrate loading is shown in Fig. 4e. At lower levels of substrate loading and lower levels of enzyme loading, the activity of the enzyme was low. This surface plot suggests that the middle-level of enzyme loading (0.7ml) and middle level of biomass loading (50mg), obtained a high enzyme activity. The interaction on enzyme activity between the pH and enzyme loading of wild sugarcane after pretreatment was presented in Fig. 4f. At lower levels of pH and lower levels of enzyme loading, the enzyme activity was low. The optimum conditions for cellulase activity of organosolvent extraction with steam explosion pretreated wild sugarcane were biomass loading (50mg), enzyme loading(0.7ml), pH (5), and temperature (48°C) with the activity of 25.36 IU/ml. The results indicated that organosolvent extraction with steam explosion pretreatment increased the yield of cellulose than to native wild sugarcane shown in Table. 2. From the results, it can conclude that the combined pretreatment of organosolvent extraction with a steam explosion is an effective method that can be further utilized for bioethanol production.

Fig. 4. Effect of various parameters on cellulase activity of organosolvent pretreated wild sugarcane (a) Effect of substrate loading and temperature on cellulase activity (b) Effect of enzyme loading and temperature on cellulase activity (c) Effect of pH and temperature on cellulase activity (d) Effect of substrate loading and pH on cellulase activity (e) Effect of substrate loading and enzyme loading on cellulase activity and (f) Effect of enzyme loading and pH on cellulase activity.

CONCLUSION

Organosolvent extraction with steam explosion pretreatment in optimizing the enzyme activity was done by Box-Behnken Design. This combinatorial pretreatment of wild sugarcane leads to an increased cellulase activity. The results have shown that acceptable correlations were found between the predicted and experimental yields. This study reveals that the cellulase activity was notably improved after the pretreatment because of the removal of lignin. After the pretreatment, the compositional analysis of the wild sugarcane resulted that 90% of the lignin being reduced when compared to the native wild sugarcane. Organosolvent extraction with steam explosion pretreatment made the biomass suitable for the enzyme activity due to the changes in its physicochemical characteristics. The optimization of cellulase activity including substrate loading, enzyme loading, pH, and, Temperature, resulted in better interaction on cellulase activity IU/ml yield. This current study proves the wild sugarcane as a suitable feedstock for bioethanol production.

Declarations

ACKNOWLEDGMENTS
This work was supported by the Department of Food Processing Technology, School of Agriculture and Biosciences, Karunya Institute of Technology and Sciences – 641114, Coimbatore, India.

CONFLICT OF INTEREST
The authors declare that there is no conflict of interest.

AUTHORS’ CONTRIBUTION
This work is done by A. S. as research scholar and Dr. G. S. have been guided as an overall mentor of the work.

FUNDING
None.

ETHICS STATEMENT
This article does not contain any studies with human participants or animals performed by any of the authors.

AVAILABILITY OF DATA
All datasets generated during this study are included in the manuscript
