Research Article | Open Access
P. Sneka, K.P. Hamsadwani and V. Sangamithra
Department of Microbiology, Bhaarath Medical College and Hospital, Chennai – 600 073, Tamil Nadu, India.
J Pure Appl Microbiol. 2022;16(1):578-584 | Article Number: 7540
https://doi.org/10.22207/JPAM.16.1.56 | © The Author(s). 2022
Received: 01/01/2022 | Accepted: 27/01/2022 | Published online: 25/02/2022
Issue online: March 2022
Abstract

ChAdOx1 nCoV-19 Vaccine (Covishield) has shown good efficacy data but the presence of non responders to the vaccine and the duration of protection conferred by the vaccine has not been clearly documented. To study the immunological response to ChAdOx1 nCoV-19 Vaccine among Health Care workers (HCWs) at a tertiary care hospital in Chennai. Materials and Methods: A Prospective study was conducted to analyze the duration of protection conferred by ChAdOx1 nCoV-19 Vaccine by testing the serum samples for Anti SARS IgG Antibody to spike protein by EUROIMMUNE ELISA Kit protocol by testing the pre vaccine sample, samples 2 weeks and 4 weeks following 1st dose,3 months and 6 months post 2 doses of vaccination and to study the association of waning immune response with comorbidities. A total of 265 Health Care Workers (HCWs) involving Nurses (35%), Doctors (32%), Technical staffs (17%) and House keeping staffs (16%) were included in the study. Majority were in age group of 41-50 Years (33%). Associated comorbidity was noticed in 19 % of HCWs. All 100% had sero conversion 4 weeks following Covishield but only 88 % had sero conversion 2 weeks following the 1st dose of Covishield. 100% of the HCWs had detectable levels of Anti SARS IgG antibody to spike protein 3 months following 2nd dose of Covishield but 6 months post 2nd dose only 90.5 % detectable levels of Anti SARS IgG antibody to spike protein. Among the 9.5% with waning immune response 68% had associated comorbidity like obesity (47%), Diabetes Mellitus (41%), Hyperlipidemia (6%) and Chronic lung disease (6%). It is important to maintain the protective antibody titers by vaccinating all the individuals with booster dose of the vaccine and considering population with comorbidities a high risk group for early priority.

Keywords

ChAdOx1, ELISA, Vaccine, Anti SARS

Introduction

Ever since the origin of the first case of Novel coronavirus also called SARS-CoV was noticed in China the virus has spread to over 200 countries marking it a global pandemic which has caused loss of numerous lives and livelihood.1 Vaccines are an efficient and economical interventions the mankind had ever invented. The only ray of hope to control the Global pandemic is vaccinating all the population to achieve a suitable level of herd immunity.2 Studies suggest to prevent the spread of the disease and to curtail the pandemic it is essential to achieve an acquired immunity of 67%.3,4 WHO has placed HCWs as the high priority group for COVID-19 vaccines. Hence it is mandatory to vaccinate all HCWs to protect themselves as well as the patients from the disease.5 India began its vaccination campaign for COVID-19 on 16 January 2021. Currently, the country has approved three COVID-19 vaccines namely

  1. Covishield (ChAdOx1- Serum institute of India)- 70-90%
  2. Covaxin (BBV152 -Bharath Biotech)- 78-95%
  3. Sputnik V (Gam-COVID-Vac; Gamaleya Research Institute of Epidemiology and Microbiology.)- 91%.6

‘The approved COVID-19 vaccines in India were all manufactured in a rush owning to the rapid need to curtail the pandemic. Though these vaccines have obtained EUA (Emergency Use Authorization) and have good efficacy data there is no clear evidence of non responders to the COVID-19 vaccines and the duration of immunity conferred by these vaccines”. Despite Mass vaccination campaigns there has been consistent increase in the number of COVID-19 cases reported.7 Thus, in this research immunological response to COVID-19 vaccines among Health Care workers (HCWs) at a tertiary care hospital in Chennai was studied.

Objectives of the study

  1. To detect the pre vaccination antibody titre
  2. To determine the sero conversion rate following COVID-19 vaccines and the presence of non responders to the COVID-19 vaccines.
  3. To follow up for the persistence of neutralizing antibodies 3 months & 6 months post vaccination and analyze the need for the 3rd booster dose
Materials and Methods

Study type: Prospective pilot study
Study group: Health care workers
Study duration: One year
Sample size: 265

Inclusion criteria
All Health care workers who have not received COVID-19 vaccines.

Exclusion criteria
Health care workers with H/O prior COVID-19 vaccination or H/O prior symptomatic COVID-19 disease.

The study was conducted after obtaining approval from the Institution ethics committee (Ethical No: BIEC-02-21) and consent from all the study participants. A detailed H/0 was obtained from the study population for presence of associated comorbidities.

Procedure
Under aseptic precautions 2 ml of venous blood was collected and serum was separated and stored at 4 degree until further processing. Further analysis was done for detecting Anti SARS IgG Antibody to spike protein by Semi quantitative ELISA by EURO IMMUNE ANTI SARS-CoV-2 Human IgG ELISA KIT targeting spike protein approved by ICMR as per the kit protocol.

  • The blood samples were collected in 5 ml SST (Serum separation tubes) vacutainer tubes from all the study participants before vaccination. The samples were analyzed for the IgG antibody to spike protein. These samples were used to know the prevalence of herd immunity among the study population by asymptomatic COVID.
  • Blood samples were collected 2 weeks and 4 weeks following first dose of Covishield and checked for seroconversion by looking for the significant levels of IgG antibody to spike protein and also to detect if there were non responders to the vaccine.

EuroImmun’s FDA EUA-approved SARS-CoV-2 IgG ELISA for serum (catalog no. EI 2606–9620, EuroImmun, NJ, USA) targeting spike (S) protein was run according to the manufacturer-provided protocol manually. Data were then analyzed as recommended by the manufacturer and results reported as a ratio (equation 1). Specimens whose ratio exceeded or was equal to 1.1 were considered positive, while specimens with a ratio greater than 0.8 and less than 1.1 were considered equivocal and specimens with a ratio less than or equal to 0.8 were considered negative. Specimens with ratios in the equivocal range were recommended to be rerun, but this did not apply to any specimens in this study.

Determination of specimen-to-cutoff ratio (S/CO ratio) as defined by the manufacturer by dividing specimen OD by the average OD of the calibrators was performed using equation 1 as follows:

Extinction of the control or patient’s sample / Extinction of calibrator = Ratio

  • 3 months and 6 months post 2 doses of Covishield the blood samples were again collected to look for the maintenance of protective levels of IgG antibody. These samples collected post vaccination will help us to know the duration of protection conferred by Covishield and might help us in evaluating the need for a booster dose and timing of the booster dose of the vaccine.
RESULTS

We included a total of 265 Health care workers (HCW) which includes Doctors, Nurses, Technical staffs and House keeping staffs. The distribution of the study population is shown in Fig. 1.

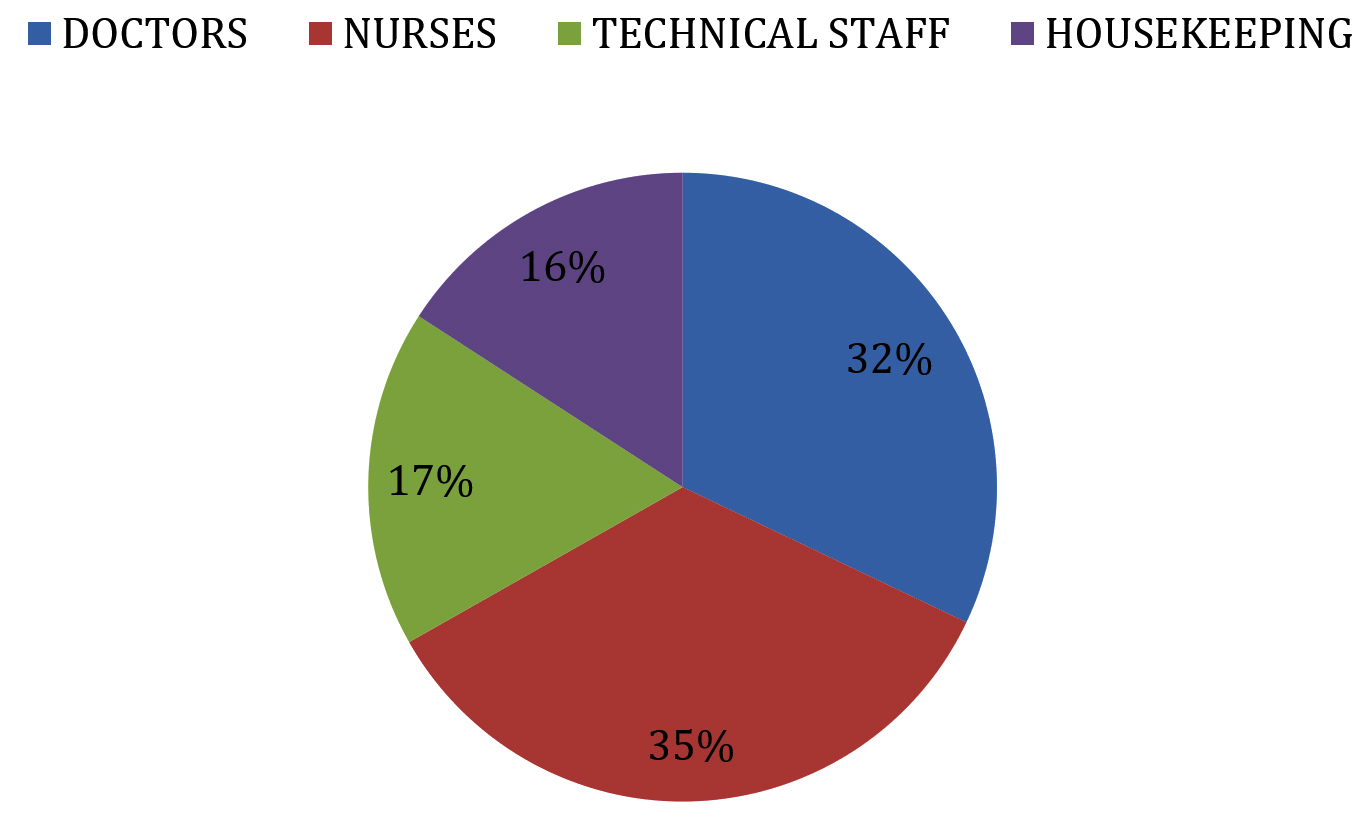

Fig. 1. Distribution of Study Population.

The maximum number of our study population was in the age group of 41-50 years. Age wise distribution of the study population is shown in Table 1.

Table (1):
Age wise distribution of the study population.

Age Range in yrs
Doctors
(n=85)
Nurses
(n=92)
Technical Staffs
(n=46)
Housekeeping staffs (n=42)
Total
(n=265)
20-30
12
28
18
08
66 (28%)
31-40
33
39
17
15
104 (27%)
41-50
32
22
08
17
79 (33%)
51-60
08
04
03
02
17 (12%)

Distribution of HCWs with/without comorbidities is shown in Fig. 2.

Fig. 2. Distribution of HCWs with/without comorbidities.

Distribution of comorbidities among the different HCWs in shown in Table 2.

Table (2):
Distribution of comorbidities among different HCWs.

Comorbidities
Doctors
(n=22)
26%
Nurses
(n=18) 19.5%
Technical staffs (n=3) 6.5%
Housekeeping staff (n=8)   19%
Diabetes mellitus
5 (23%)
5 (28%)
1 (33.3%)
2 (25%)
Hypertension
2 (9%)
1 (5.5%)
1 (12.5%)
Cardiac Diseases
4 (!8%)
1 (5.5%)
Obesity
7 (32%)
4 (22%)
1 (33.3%)
3 (37.5%)
Chronic Lung Disease
2 (11%)
1 (33.3%)
1 (12.5%)
Hyperlipidemia
3 (17%)
>1 co-morbid condition
4 (18%)
2 (11%)
1 (12.5 %)

100% of the HCWs had sero conversion 4 weeks following the 1st dose of Covishield but only 88% had sero conversion 2 weeks following the 1st dose of Covishield. Sero conversion rate following Covishield is shown in Fig. 3. Which is significant with p-value<0.05.

Fig. 3. Sero conversion rate following the Covishield.

3 Months following the 2 doses of Covishield 100% had protective antibody titers but 6 months later only 90.5% showed protective antibody titre. Post vaccination antibody status following 2 doses is shown in Fig. 4 which is significant with p-value <0.05 i.e., 0.03

Fig. 4. Post vaccination Antibody status following 2 doses of Covishield.

Immune response post vaccination and association of waning immune response to comorbidity among the study groups is shown in Table 3.

Table (3):
Immune response post vaccination and association of waning immune response to comorbidity.

Doctors (n=85) Nurses (n=85) Technical staffs (n=46) House keeping staffs (n=42)
3 Months 6 Months 3 Months 6 Months 3 Months 6 Months 3 Months 6 Months
85 (100%) 76 (89%) 92 (100%) 84 (91%) 46 (100%) 41 (89%) 42 (100%) 39 (76%)
Waning immune response (n=25) 9.5%
Doctors (n=9) Nurses (n=8) Technical staffs (n=5) House keeping staffs (n=3)
Presence of Associated comorbidity No associated comorbidity Presence of Associated comorbidity No associated comorbidity Presence of Associated comorbidity No associated comorbidity Presence of Associated comorbidity No associated comorbidity
7 (78%) 2 (22%) 5 (62.5%) 3 (37.5%) 2 (40%) 3 (60%) 3 (100%) 0 (0%)

Our study participants with Diabetes Mellitus, Obesity, Hyperlipidemia and Chronic lung disease showed waning of antibody titers. Association of various comorbidities with waning immune response is shown in Table 4.

Table (4):
Association of various comorbidities with waning Immune response.

Doctors
Nurses
Technical staff
Housekeeping staff
(n=7)
(n=5)
(n=2)
(n=3)
Diabetes
Diabetes mellitus (2)
mellitus (3)
Diabetes mellitus (1)
Diabetes mellitus (1)
Obesity (4)
Hyperlipidemia (1)
Obesity (1)
Obesity (2)
Obesity(1)
Chronic lung
disease (1)

Waning Immune response in study groups with/without co-morbidities is shown in Fig. 5.

Fig. 5. Waning Immune response in study groups with/without co-morbidities.

There is significant association between waning immune response with comorbidity when compared with healthcare workers with p-value<0.05 i.e., 0.003.

Among the study group with associated comorbidity Obesity, Diabetes Mellitus, Hyperlipidemia and chronic lung disease was associated with waning antibody titres. Distribution of Comorbidities in the study group with waning immunity is shown in Fig. 6.

Fig. 6. Distribution of Comorbidities in the study group with waning immunity.

DISCUSSION

The study was conducted among 265 Health care workers to evaluate the immunological response to COVID-19 Vaccines. In our study group majority were Nurses (35%) followed by Doctors (32%), Technical staffs (17%) and House keeping staffs (16%). The enrolled study participants were evaluated for comorbidities like Diabetes mellitus, Hypertension, Hyperlipidemia, Pre existing cardiac diseases, assessed for obesity, chronic lung diseases through detailed history and laboratory assessment. We found that 10% of the study population had protective levels of Anti SARS IgG Antibody to Spike protein before receiving COVID-19 vaccines indicating the acquired immunity due to aymptomatic infection. We found 100% sero conversion rate 4 weeks following the 1st dose of Covishield but 2 weeks following the 1st dose of the vaccine only 88% had protective titers. We also found there were no non responders to Covishield which is in contrast to other studies which showed the presence of non responders in persons with Immune Mediated Inflammatory Disease (IMID) and persons with hematological malignancies.8,9

In our study, we found 9.5% of the study participants did not have protective antibody titers 6 months following 2 doses of Covishield. Other studies have also documented waning immunity following 2 doses of COVID-19 vaccines they have not clearly stated the duration after which immune waning occurs.10,11 Among the study group with waning antibody titres, 68% had associated one or the other comorbidity and the remaining 32% had no associated co morbidity. Various studies have documented the association of disease severity with comorbidities but data on the immune protection offered by COVID vaccines to comorbidities is lacking.12,13 Among the different comorbidities in the immune response waning group Obesity (47%) followed by Diabetes mellitus (41%) were the major contributors followed by Hyperlipidemia (6%) and Chronic lung disease (6%). Studies done in other parts of the world also revealed presence of associated comorbidities causes waning immune response for COVID-19 vaccines.14

CONCLUSION

The study highlights the importance to consider booster doses to be given 6 months following 2 doses of Covishield for all individuals with pre-existing comorbidities as high risk group to prevent the risk of Reinfection and overcome the pandemic.

Declarations

ACKNOWLEDGMENTS
None.

CONFLICT OF INTEREST
The authors declare that there is no conflict of interest.

AUTHORS’ CONTRIBUTION
All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.

FUNDING
None.

ETHICS STATEMENT
The study was conducted after approval from the Bhaarath Institutional Ethics committee, India (Ethical No: BIEC-02-21)

AVAILABILITY OF DATA
All data sets generated or analyzed during the study are included in the manuscript.

INFORMED CONSENT
The study was conducted after obtaining informed consent from all the participants.

References
  1. WHO. Coronavirus disease 2019 (COVID-19) Situation Report – 26. Beijing (2020). Available online at: http://www.nhc.gov.cn/xcs/yqtb/list_gzbd.shtml
  2. Frederiksen LSF, Zhang Y, Foged C, Thakur A. The long road toward COVID-19 herd immunity: vaccine platform technologies and mass immunization strategies. Front Immunol. 2020;11:1817.
    Crossref
  3. Randolph HE, Barreiro LB. Herd immunity: understanding COVID-19. Immunity. 2020;52(5):737-741.
    Crossref
  4. Fontanet A, Cauchemez S. COVID-19 herd immunity: where are we? Nat Rev Immunol. 2020;20(10):583-584.
    Crossref
  5. Wang J, Jing R, Lai X, et al. Acceptance of COVID-19 vaccination during the COVID-19 pandemic in China. Vaccines. 2020;8(3):482.
    Crossref
  6. Choudhary OP, Choudhary P, Singh I. India’s COVID-19 vaccination drive: key challenges and resolutions. Lancet Infect Dis. 2021;21(11):1483-1484.
    Crossref
  7. Subramanian SV. India faces a challenge with its mass vaccination efforts. Lancet Glob Health. 2021;9(9):e1201-e1202.
    Crossref
  8. Simon D, Tascilar K, Fagni F, et al. Efficacy and safety of SARS-CoV-2 revaccination in non-responders with immune-mediated inflammatory disease Annals of the Rheumatic Diseases. 2021:1-5.
    Crossref
  9. Teh JSK, Coussement J, Neoh ZCF, et al .Immunogenicity of COVID-19 vaccines in patients with haematological malignancy: A systematic review and meta-analysis. medRxiv. 2021.
    Crossref
  10. Khoury DS, Cromer D, Reynaldi A, et al. Neutralizing antibody levels are highly predictive of immune protection from symptomatic SARS-CoV-2 infection. Nat Med 27, 1205–1211 (2021).
    Crossref
  11. Borges do Nascimento IJ, Marusic A, Cacic N, et al. Novel Coronavirus Infection (COVID-19) in humans: a scoping review and meta-analysis. J Clin Med. 2020;9:941.
    Crossref
  12. Emami A, Javanmardi F, Pirbonyeh N, Akbari A. Prevalence of Underlying Diseases in Hospitalized Patients with COVID-19: a Systematic Review and Meta-Analysis. Arch Acad Emerg Med. 2020;24;8(1):e35.
  13. Yang J, Zheng Y, Gou X, et al. Prevalence of comorbidities in the novel Wuhan coronavirus (COVID-19) infection: a systematic review and meta-analysis. Int J Infect Dis. 2020;94:91-95.
    Crossref
  14. Nomura Y, Sawahata M, Nakamura Y, et al. Attenuation of antibody titers during 3-6 months after the second dose of the BNT162b2 vaccine depends on sex, with age and smoking as risk factors for lower antibody titers at 6 months. medRxiv. 2021.
    Crossref
